Intravenous(I.V.) Cannula

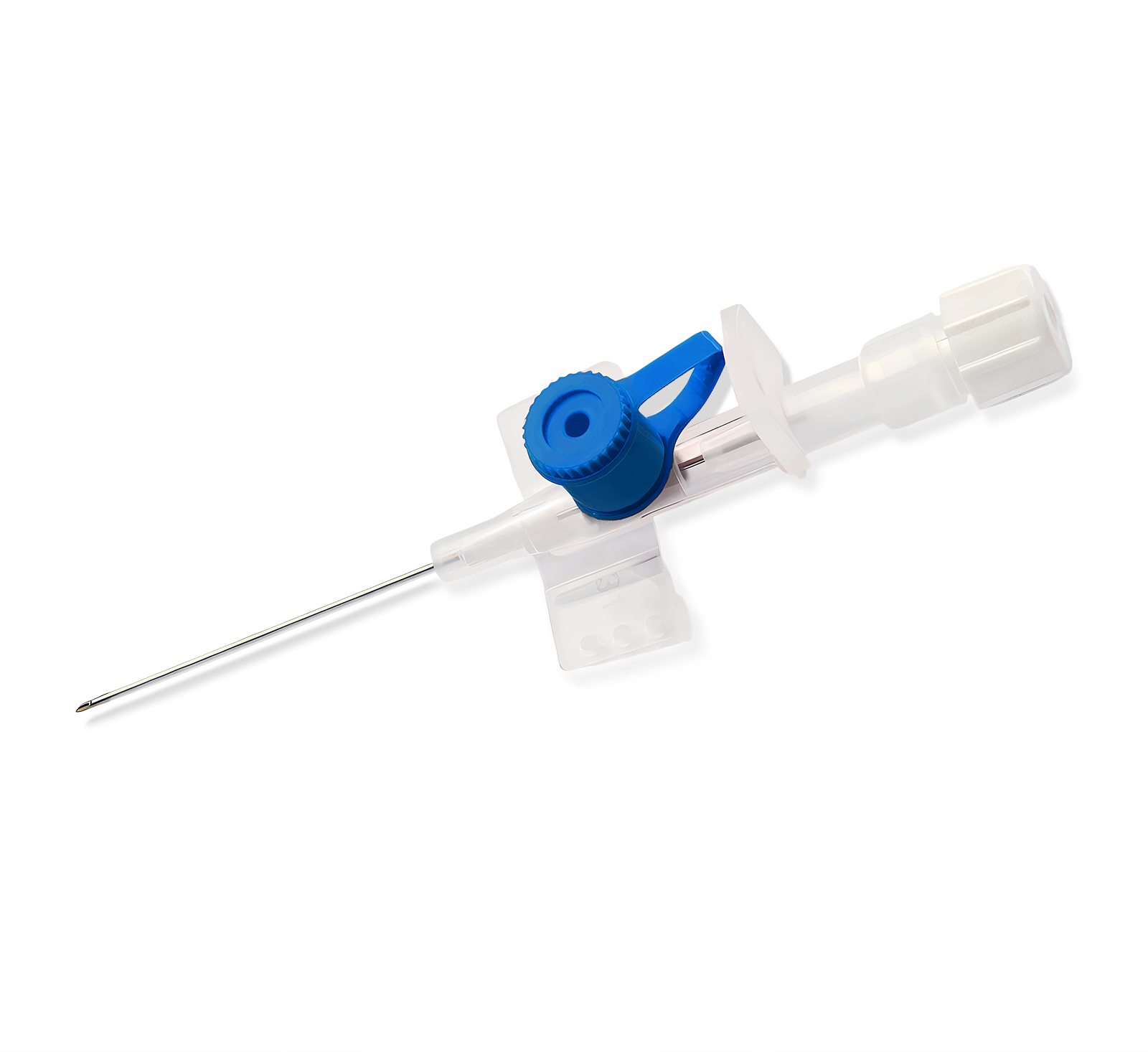

Plusflon

Peripheral Intravenous(I.V.) Cannula with injection valve with wings
I.V. Cannula (Plusflon) with injection valve with wings has been designed to provide extra medication, through injection port, without pain.

Plusflon

÷ Send Enquiry ÷


General Specification
Salient Feature
Packaging

Specification
Gauge Colour Int – Ext Dia (in mm) Length (in mm) Water Flow (ml/min.)
14 Orange 1.6 – 2.1 45 240
16 Grey 1.3 – 1.8 45 180
17 White 1.2 – 1.5 45 125
18 Green 0.9 – 1.3 45 90
20 Pink 0.8 – 1.1 32 60
22 Blue 0.6 – 0.9 25 36
24 Yellow 0.5 – 0.7 19 20
26 Violet 0.4 – 0.6 19 13


Packing List (Plusflon)
Inner Carton Qty Outer Carton Qty Mastercarton CBM Per Export Carton Qty Per 20ft Container (29.000 CBM) Qty Per 40ft Container (58,000 CBM) Qty Per 40ft Hc Container (65,000 CBM)
DIMENSION (CM) WEIGHT IN (KG)
L W H Vol. Net Gross
100 1000 69.8 32 17.8 6.63 5.12 6.32 0.04 725000 1460000 1630000

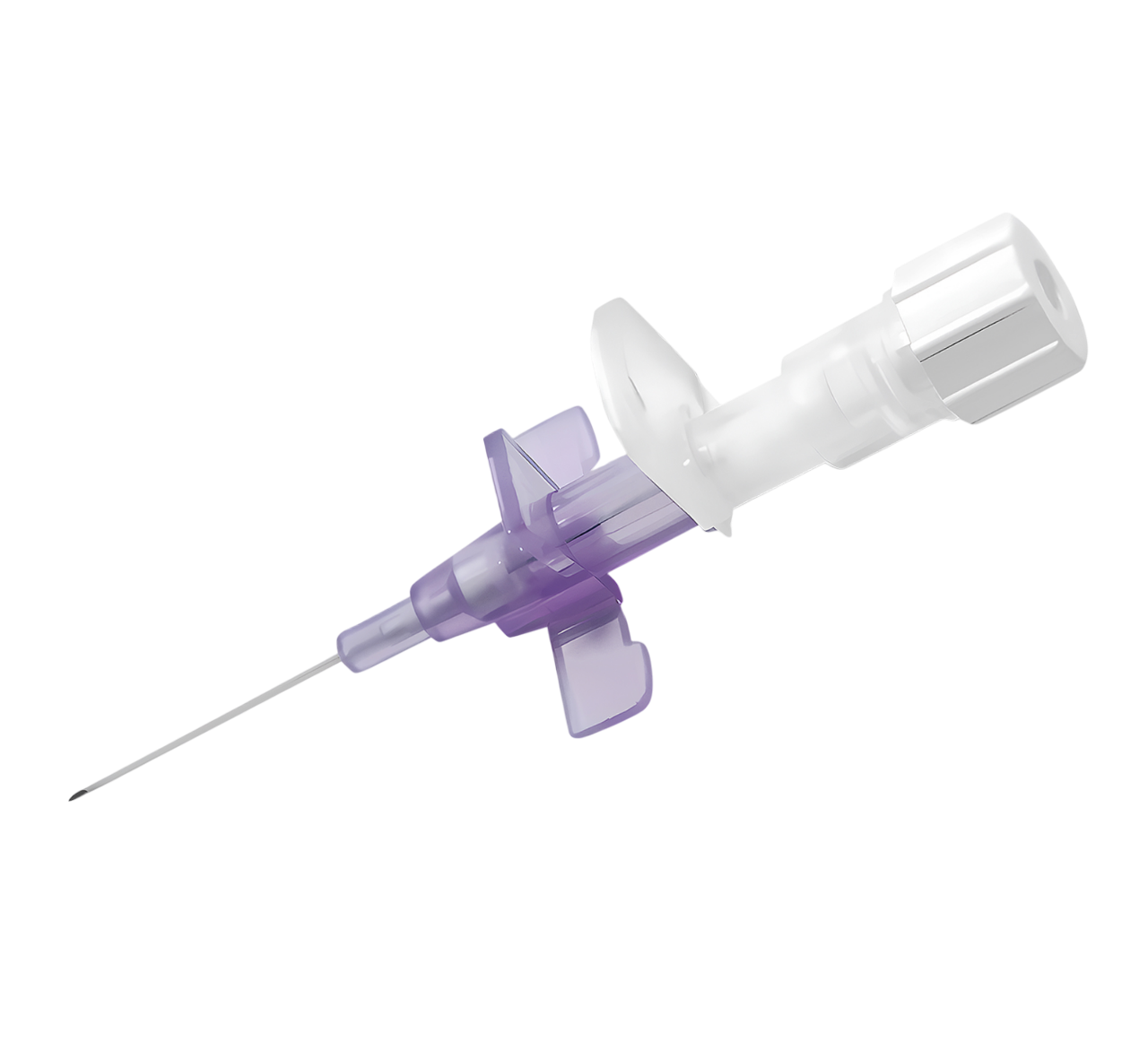

Plusneo

Peripheral Intravenous(I.V.) Cannula without injection valve with wings
I.V. Cannula (Plusneo) without injection valve with small wings has been designed specially for soft & small vein cannulation (for paediatric use). It is available in 24G & 26G.

Plusneo

÷ Send Enquiry ÷


General Specification
Salient Feature
Packaging
Specification
Gauge Colour Int – Ext Dia (in mm) Length (in mm) Water Flow (ml/min.)
24 Yellow 0.5 – 0.7 19 20
26 Violet 0.4 – 0.6 19 13

Packing List (Plusneo)
Inner Carton Qty Outer Carton Qty Mastercarton CBM Per Export Carton Qty Per 20ft Container (29.000 CBM) Qty Per 40ft Container (58,000 CBM) Qty Per 40ft Hc Container (65,000 CBM)
DIMENSION (CM) WEIGHT IN (KG)
L W H Vol. Net Gross
100 1000 69.8 32 17.8 6.63 5.12 6.32 0.04 725000 1460000 1630000

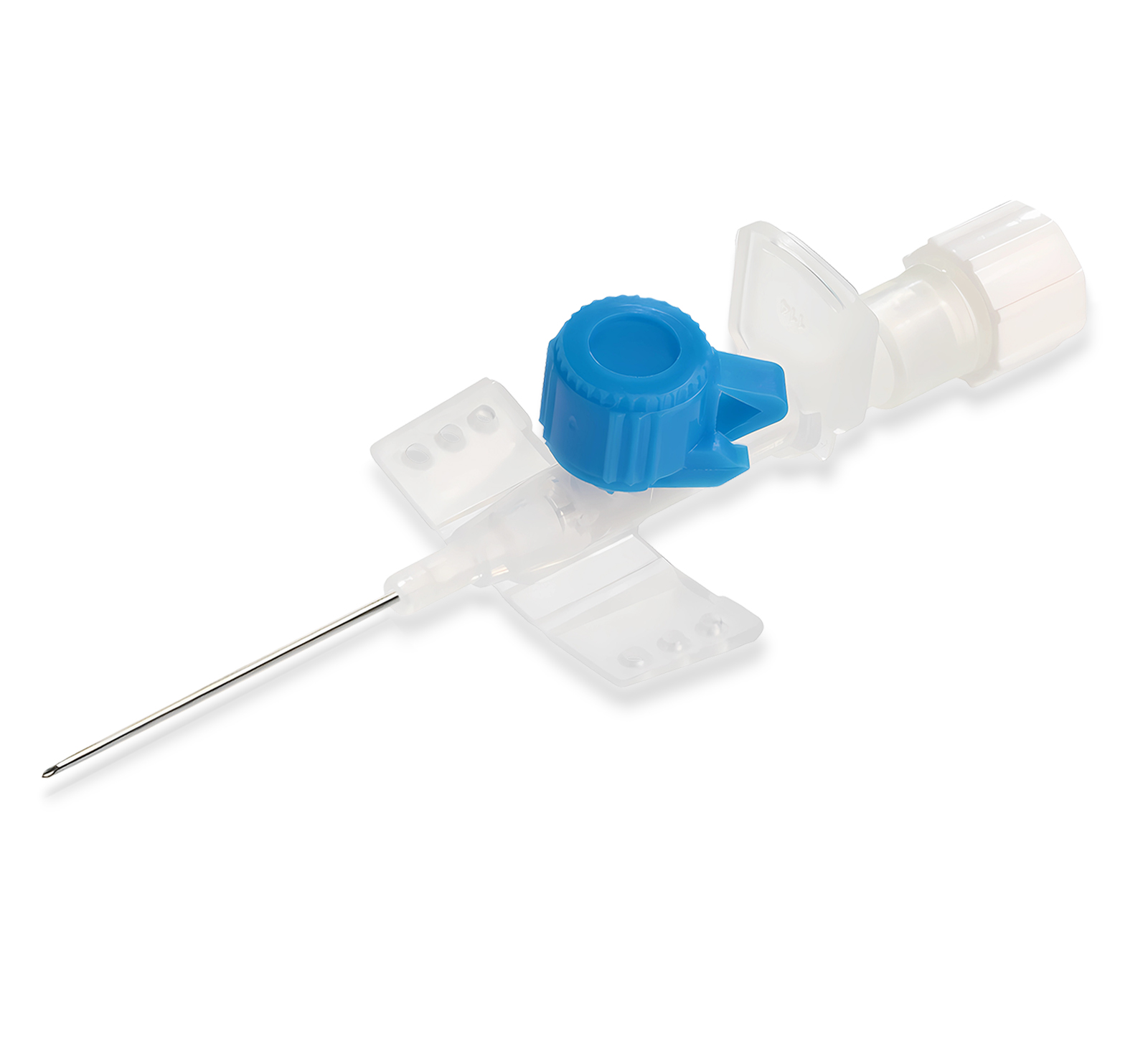

Plusvein

I.V. Cannula with injection valve with wings
I.V. Cannula (Plusvein) with injection valve with wings has been designed to provide extra medication, through injection port, without pain.

Plusvein

÷ Send Enquiry ÷


General Specification
Salient Feature
Packaging

Specification
Gauge Colour Int – Ext Dia (in mm) Length (in mm) Water Flow (ml/min.)
14 Orange 1.6 – 2.1 45 240
16 Grey 1.3 – 1.8 45 180
17 White 1.2 – 1.5 45 125
18 Green 0.9 – 1.3 45 90
20 Pink 0.8 – 1.1 32 60
22 Blue 0.6 – 0.9 25 36
24 Yellow 0.5 – 0.7 19 20
26 Violet 0.4 – 0.6 19 13


Packing List (Plusvein)
Inner Carton Qty Outer Carton Qty Mastercarton CBM Per Export Carton Qty Per 20ft Container (29.000 CBM) Qty Per 40ft Container (58,000 CBM) Qty Per 40ft Hc Container (65,000 CBM)
DIMENSION (CM) WEIGHT IN (KG)
L W H Vol. Net Gross
100 1000 69.8 32 17.8 6.63 5.12 6.32 0.04 725000 1460000 1630000

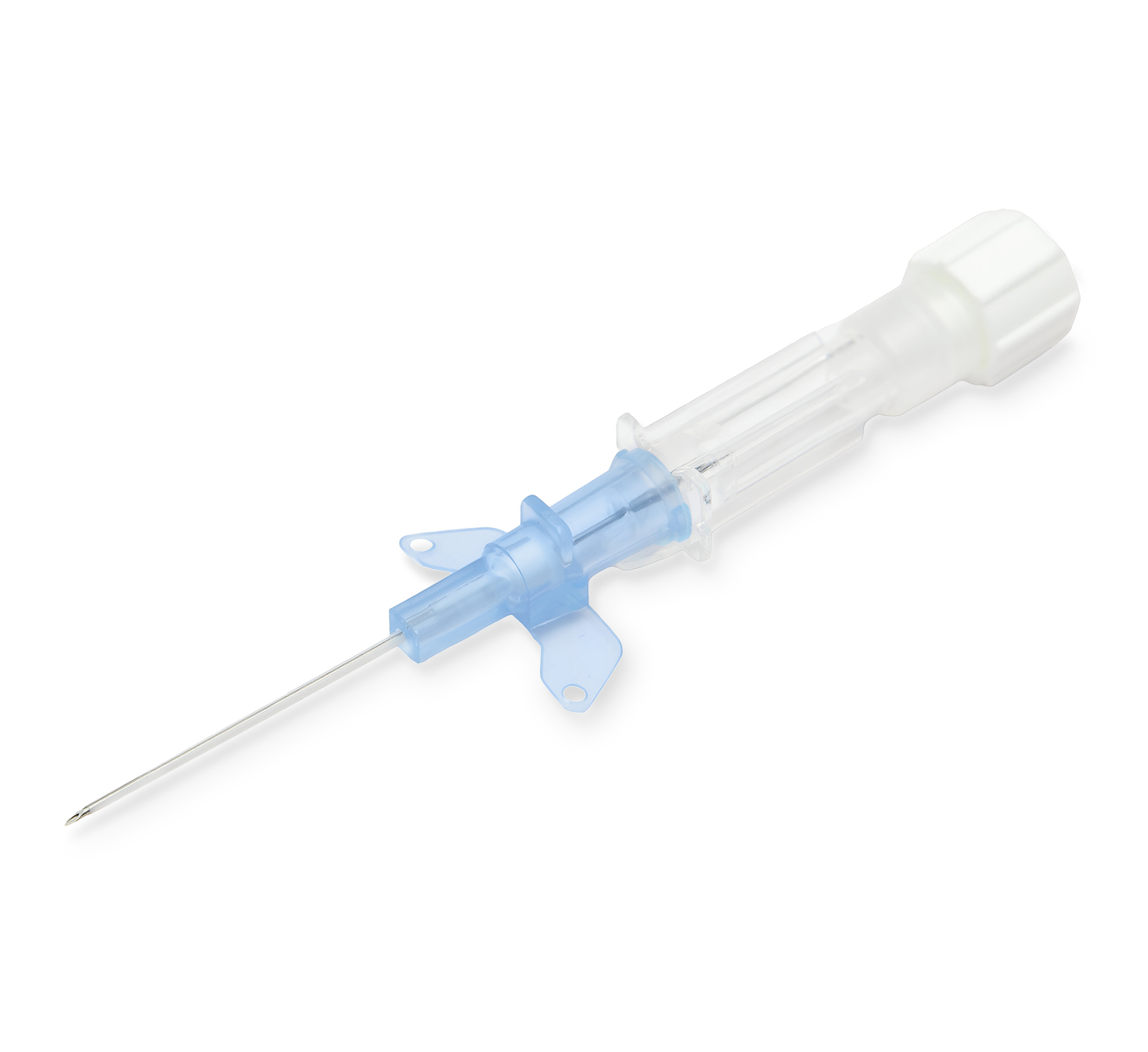

Pluscan

I.V. Cannula without injection valve with wings
I.V. Cannula (Pluscan) without injection valve with wings has been designed to prevent with high risk from additional opening in the cannula.

Pluscan

÷ Send Enquiry ÷


General Specification
Salient Feature

Packaging


Specification
Gauge Colour Int – Ext Dia (in mm) Length (in mm) Water Flow (ml/min.)
14 Orange 1.6 – 2.1 45 240
16 Grey 1.3 – 1.8 45 180
17 White 1.2 – 1.5 45 125
18 Green 0.9 – 1.3 45 90
20 Pink 0.8 – 1.1 32 60
22 Blue 0.6 – 0.9 25 36
24 Yellow 0.5 – 0.7 19 20
26 Violet 0.4 – 0.6 19 13

Packing List (Pluscan)
Inner Carton Qty Outer Carton Qty Outer Carton CBM Per Master Carton Qty Per Container
DIMENSION (CM) WEIGHT IN (KG)
L W H Vol. Net Gross m3 20Ft 40ft 40ft HC
100 1000 69.8 32 17.8 6.626 5.120 6.320 0.0397 725000 1460000 1630000

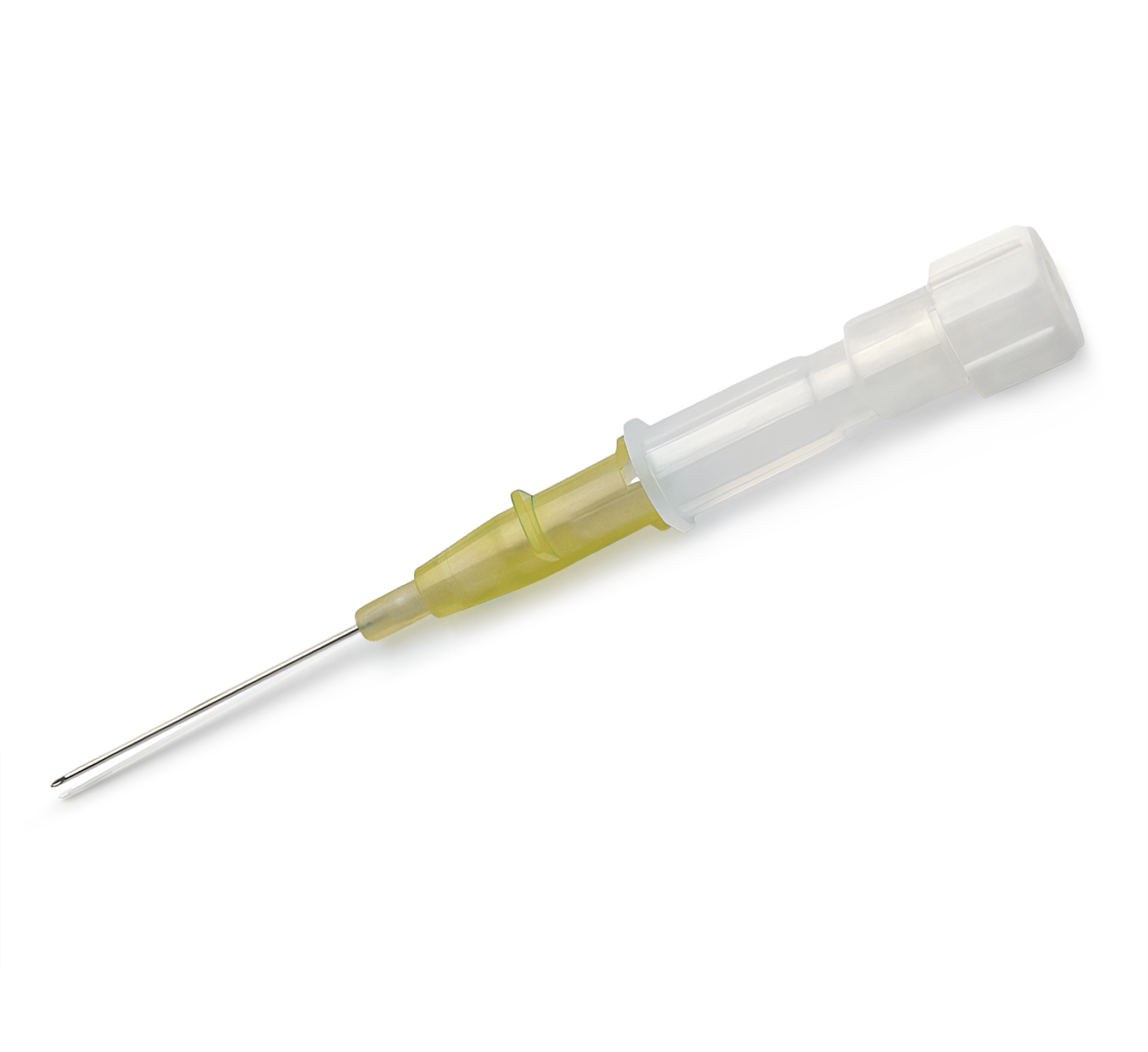

Pluscan Alpha

I.V. Cannula without injection valve & wings
I.V. Cannula (Pluscan Alpha) without injection valve & wings has been designed to prevent with high risk from additional opening in the cannula. It has Long & broad needle hub for perfect grip and control.

Pluscan Alpha

÷ Send Enquiry ÷


General Specification
Salient Feature

Packaging

Specification
Gauge Colour Int – Ext Dia (in mm) Length (in mm) Water Flow (ml/min.)
14 Orange 1.6 – 2.1 45 240
16 Grey 1.3 – 1.8 45 180
17 White 1.2 – 1.5 45 125
18 Green 0.9 – 1.3 45 90
20 Pink 0.8 – 1.1 32 60
22 Blue 0.6 – 0.9 25 36
24 Yellow 0.5 – 0.7 19 20
26 Violet 0.4 – 0.6 19 13

Packing List (Pluscan Alfa)
Inner Carton Qty Outer Carton Qty Mastercarton CBM Per Export Carton Qty Per 20ft Container (29.000 CBM) Qty Per 40ft Container (58,000 CBM) Qty Per 40ft Hc Container (65,000 CBM)
DIMENSION (CM) WEIGHT IN (KG)
L W H Vol. Net Gross
100 1000 46.4 29.2 17.8 4.280 3.560 4.830 0.0256 1130000 2250000 2530000

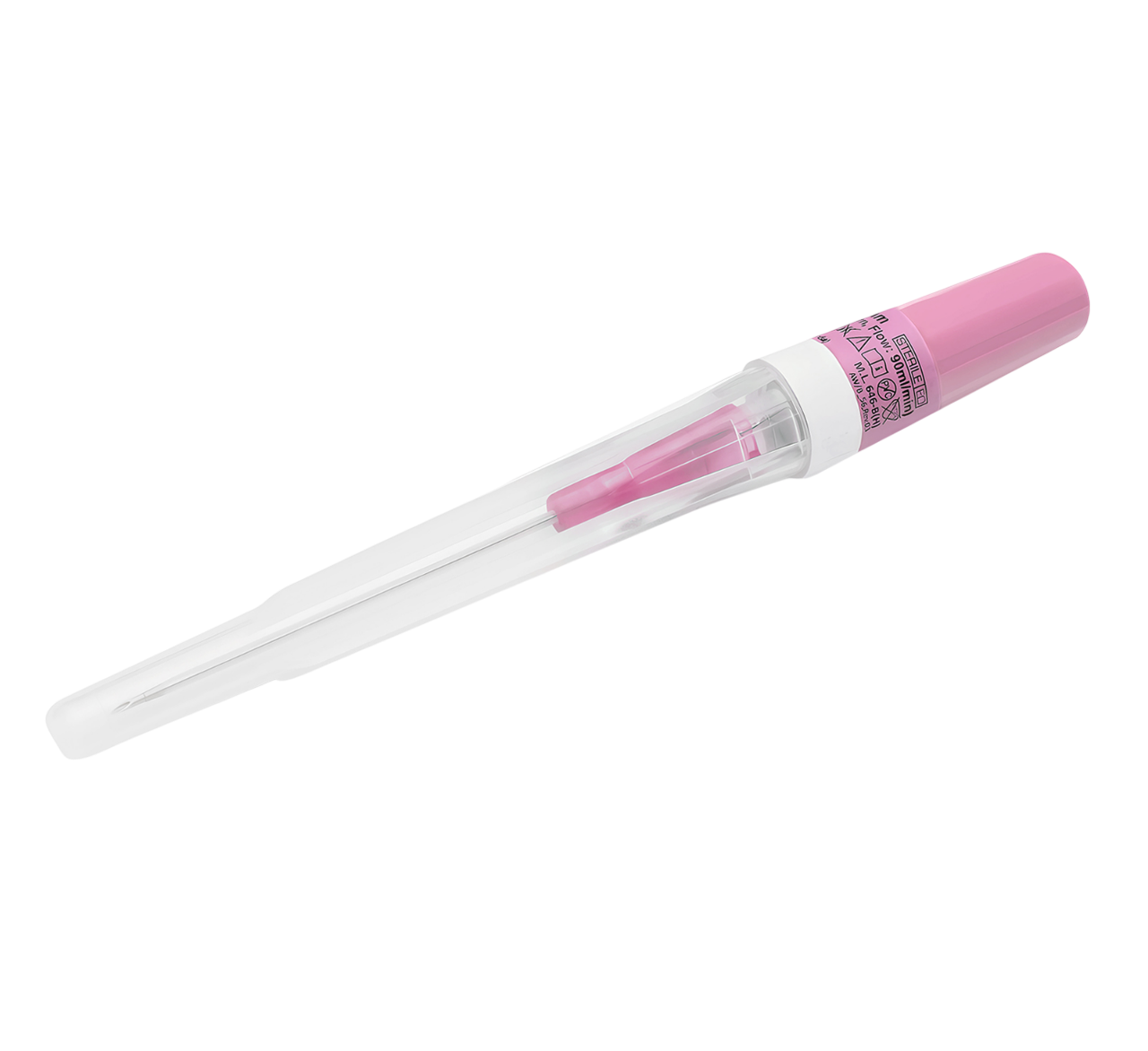

Pluscan Alpha (Pen Type)

I.V. Cannula without injection valve & wings
I.V. Cannula (Pluscan Alpha) without injection valve & wings has been designed to prevent with high risk from additional opening in the cannula. It is a pen type cannula with long & broad needle hub for perfect grip and control.

PLUSCAN ALPHA (Pen type)

÷ Send Enquiry ÷


General Specification
Salient Feature
Packaging
Specification
Gauge Colour Int – Ext Dia (in mm) Length (in mm) Water Flow (ml/min.)
14 Orange 0.6 – 2.1 45 240
16 Grey 1.3 – 1.8 45 180
17 White 1.2 – 1.5 45 125
18 Green 0.9 – 1.3 45 90
20 Pink 0.8 – 1.1 32 60
22 Blue 0.6 – 0.9 25 36
24 Yellow 0.5 – 0.7 19 20
26 Violet 0.4 – 0.6 19 13

Packing List (Pluscan Alpha (Pen Type))
Description Inner Carton Qty Outer Carton Qty Mastercarton CBM Per Export Carton Qty Per 20ft Container (29.000 CBM) Qty Per 40ft Container (58,000 CBM) Qty Per 40ft Hc Container (65,000 CBM)
DIMENSION (CM) WEIGHT IN (KG)
L W H Vol. Net Gross
Size: 14, 16, 17, 18, 20, 22, 24 & 26G 100 1000 52 32 18 4.992 3.560 4.830 0.0299 1,003,000 1,935,000 2,170,000
